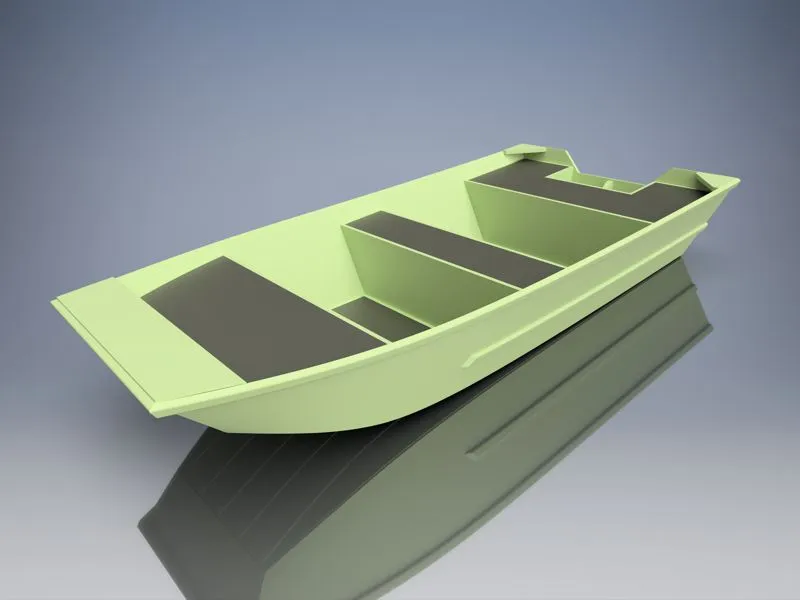

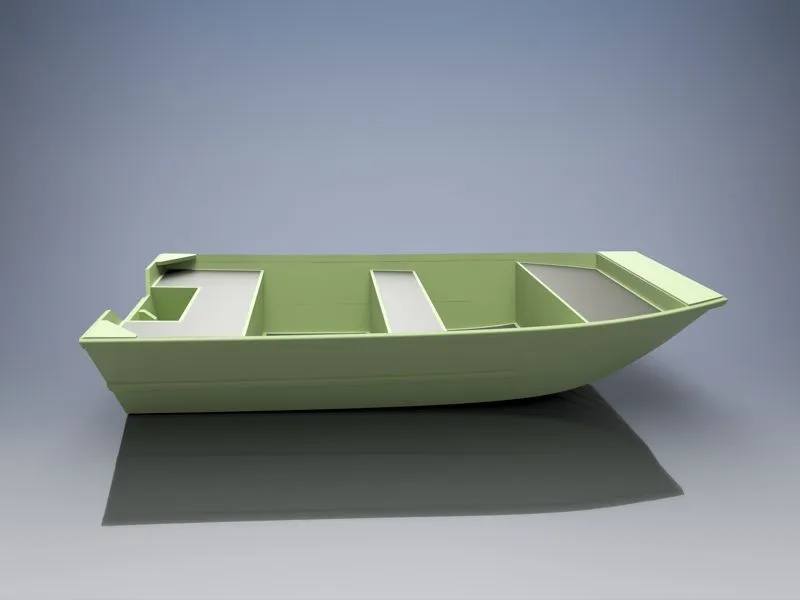

11 Foot (3.35 m) Plywood Jon Boat Plans
The 11 ft plywood jon boat is a compact, stable, and easy-to-build flat-bottom boat designed for fishing, recreation, and light transport. Built using the proven stitch-and-glue construction method, it is ideal for beginners and DIY builders.
Thanks to its wide beam and flat-bottom hull, this boat offers excellent stability and shallow draft performance. It works perfectly on lakes, rivers, and calm waters, whether you choose rowing or a small outboard engine.
Why Choose This Jon Boat?
- Flat-bottom hull for maximum stability
- Very easy to build – beginner-friendly design
- Lightweight and easy to transport
- Perfect for fishing and recreational use
- Compatible with small outboard engines (10–15 HP)
Technical Specifications
- Length: 11′ (3.35 m)
- Beam: 65″ (1.65 m)
- Depth: 4″ (10 cm)
- Engine: 10–15 HP, long or short shaft (20″ or 15″ transom)
- Dry hull weight: 202 lbs (92 kg)
- Maximum load: 2 persons (approx. 150 kg)
- Design category: D
Construction & Materials
Imperial Version:
- Bottom and sides: 3/8″ plywood
- Seats and frames: 1/2″ plywood
Metric Version:
- Bottom and sides: 9 mm plywood
- Seats and frames: 12 mm plywood
The stitch-and-glue method ensures a strong, lightweight structure with minimal tools, making the build process fast and accessible.
Available Plan Options
HAND CUT (DIY Version)
- 1:1 Full-Scale Plans
- Plotting Points Method
CNC Version
- CNC-ready cutting files for precise assembly
STUDY PLANS
- Reference drawings (not intended for construction)
Perfect For
- Beginner boat builders
- Fishing on lakes and rivers
- Shallow water environments
- Light recreational use
Instant download available after purchase – start building today!
