Aluminium Boat Plans
Showing all 3 results
-
Price range: 5,99 $ through 75,00 $- Length : 10 ‘ (3.00Meters)
- Beam : 55″ (1.4 Meters)
- Depth: 8″ (20 Cm)
- Engine: 10-20 HP Long Shaft (20″ transom notch)
- Dry Hull Weight: 460 Lbs. (208 Kg.)
- Max Gross Load: 2 Persons @75kg = 150kg
- (Class “D”)

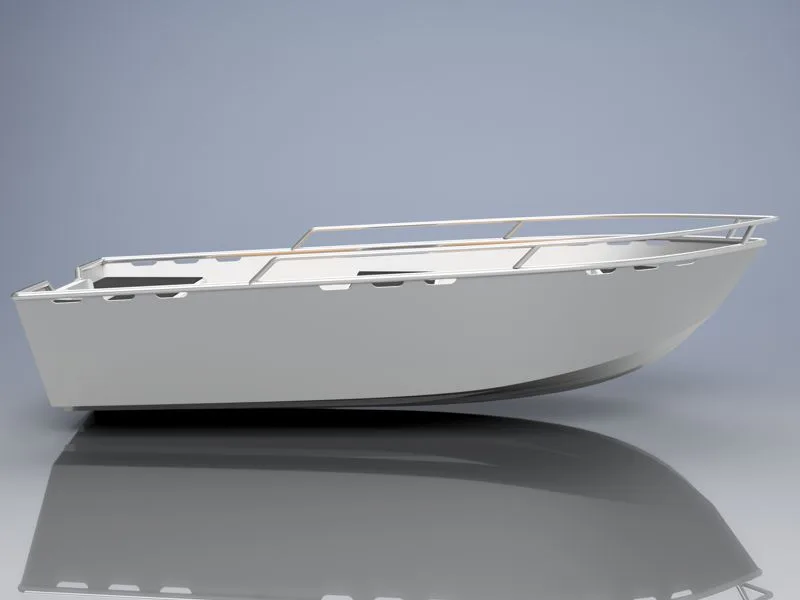

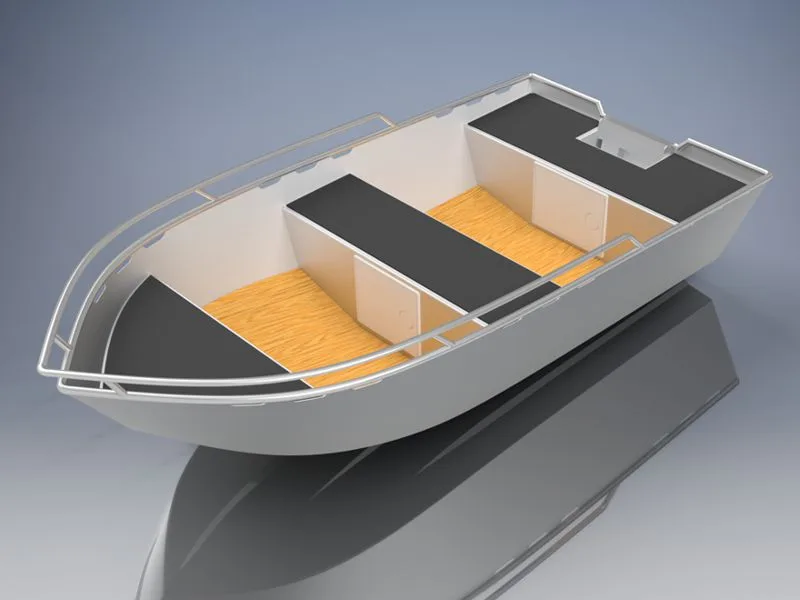

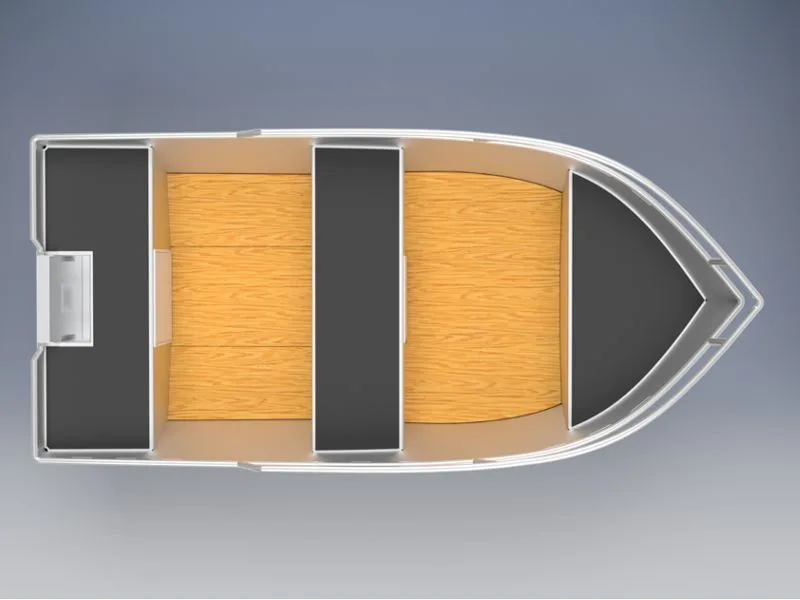

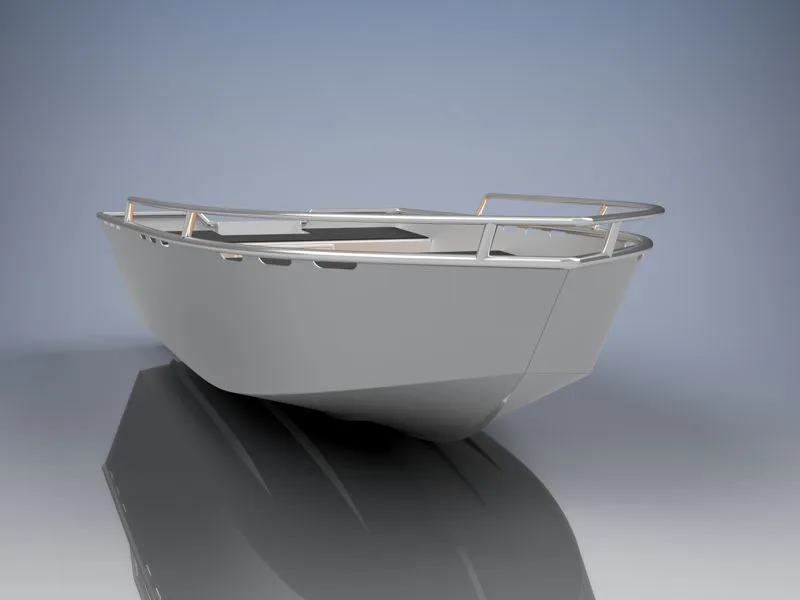

10 Foot (3,0m) Aluminum Utility Skiff Plans
Price range: 5,99 $ through 75,00 $ Select options This product has multiple variants. The options may be chosen on the product pageQuick View -
Price range: 5,99 $ through 125,00 $- Length : 11 ‘ 4″ (3.45 Meters)
- Beam : 65″ (1.65 Meters)
- Depth: 4″ (16 Cm)
- Engine: 5-20 HP Long Shaft (20″ transom notch)
- Dry Hull Weight: 319 Lbs. (145kg.)
- Max Gross Load: 3 Persons @75kg = 150kg
- (Class “C”)

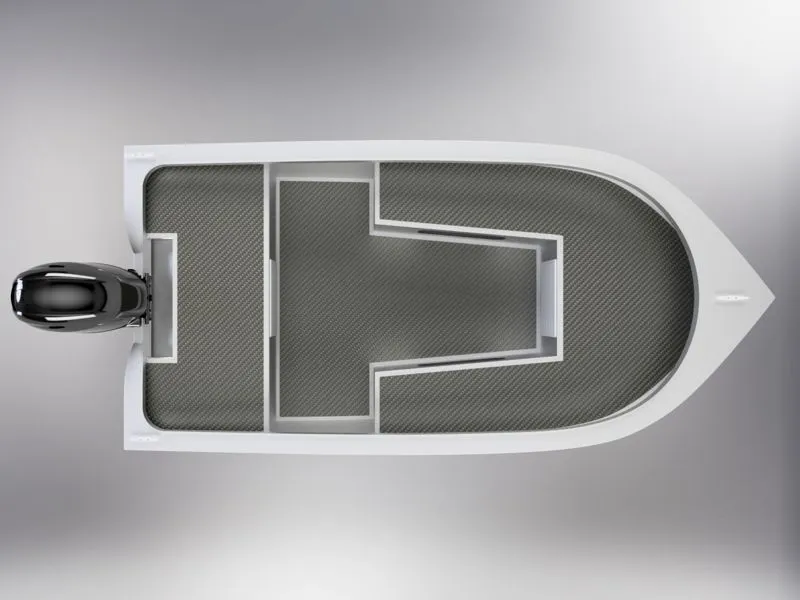

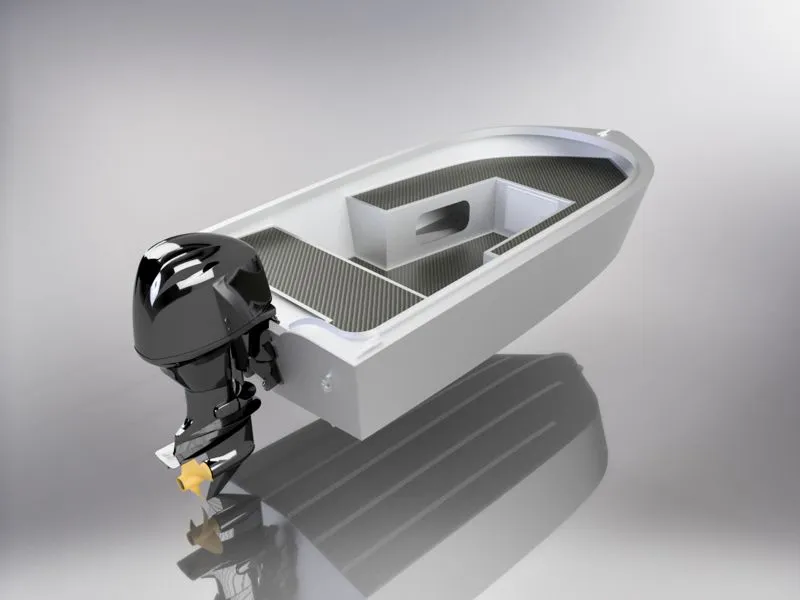

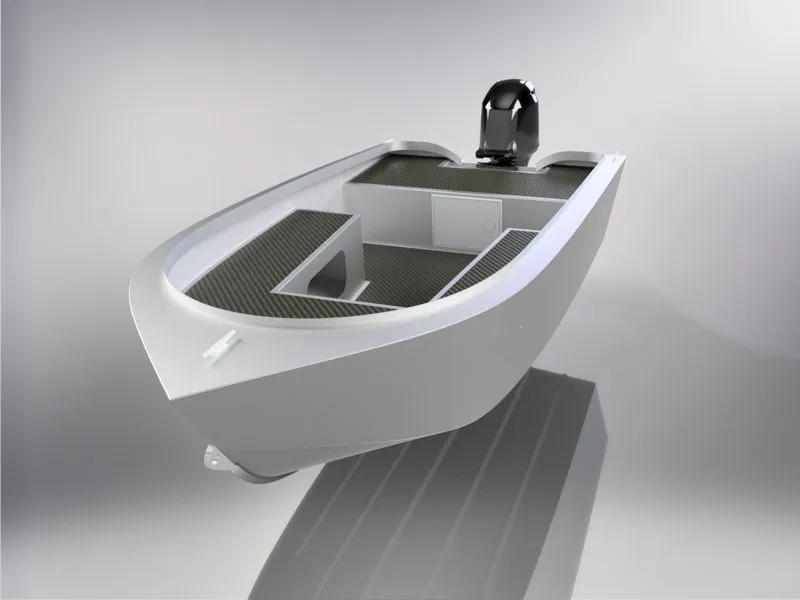

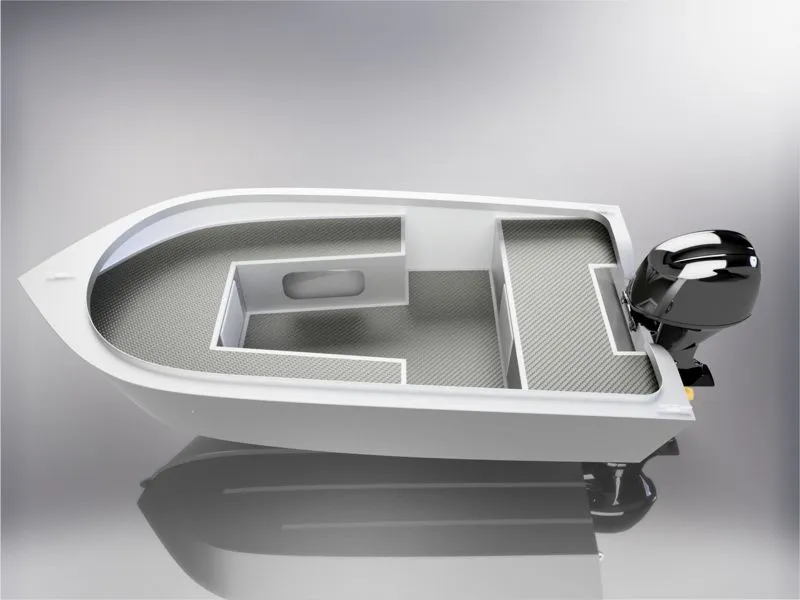

11 Foot (3.45m) Aluminum Utility Skif Plans
Price range: 5,99 $ through 125,00 $ Select options This product has multiple variants. The options may be chosen on the product pageQuick View -
Price range: 14,95 $ through 235,00 $- Hull length: 17′ (5,18m)
- Hull width 80″ (2,03m)
- Chine Width 60″ (1,52m)
- Max MPH 30-32 mph
- Side Depth 29,5″ (75 cm)
- Cockpit Depth 23″ (58 cm)
- Fuel Capacity – Portable
- Deadrise 4,75°
- Dry hul weight: 870 lbs (395 kg)
- Weight (Boat + max engine, dry) 1135 lbs (515 kg)
- Front Livewell Capacity: 17 Gal – 65 liters
- Front Livewell Length: 32″ (82 cm) Long
- Draft max. water line: 5″ – 7″ (12 – 19 cm)
- Displacement max: 1796 lbs (815 kg)
- Max Person weight 661 lbs (300 kg)
- Maximum Persons 4
- Design category „C”
- Transom inclination angle 12 degrees
- Transom Height: 20″ – 508mm (foot “L”)
- Outboard engine: 20 HP – 60 HP

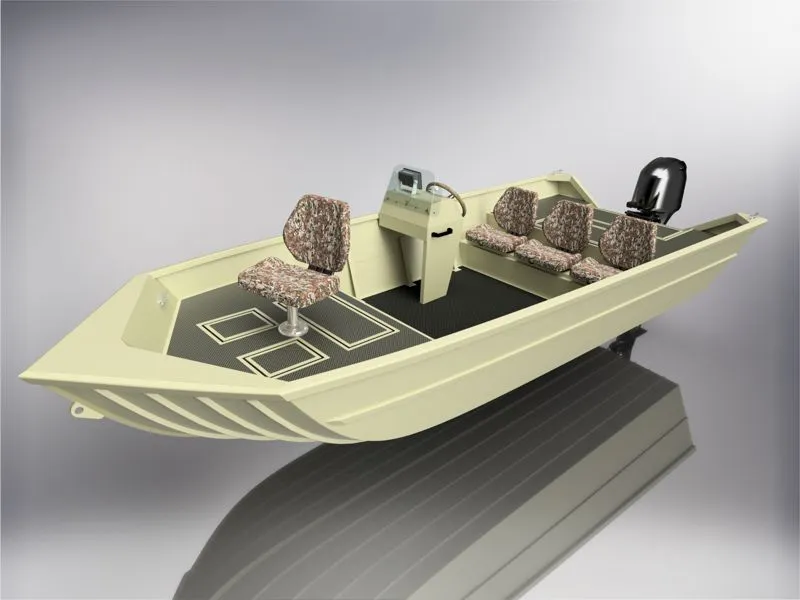

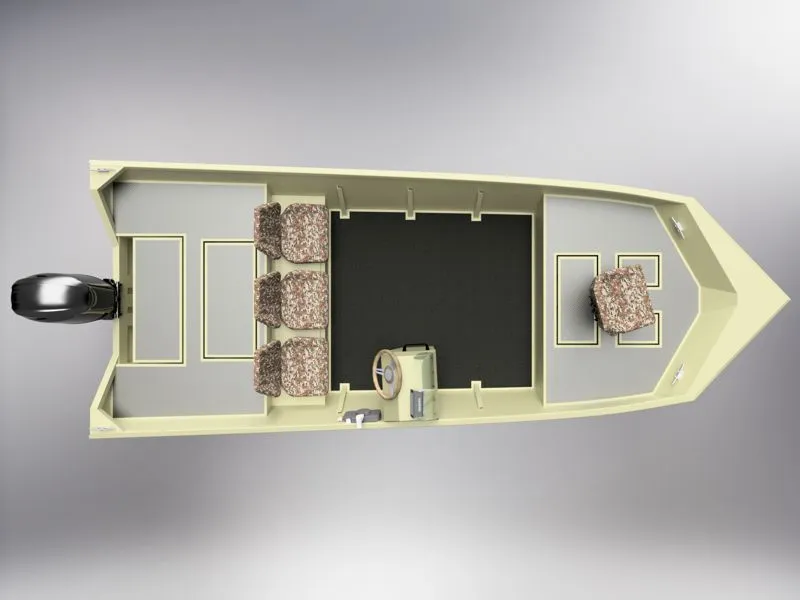

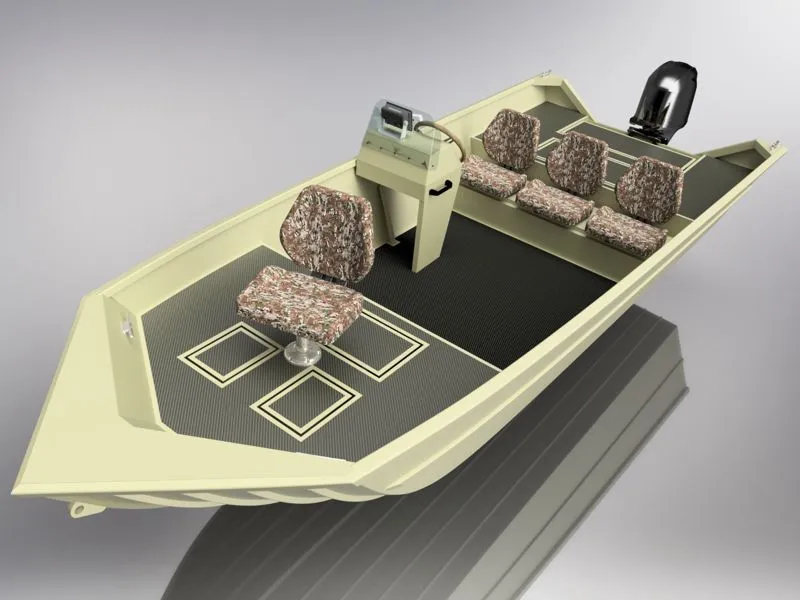

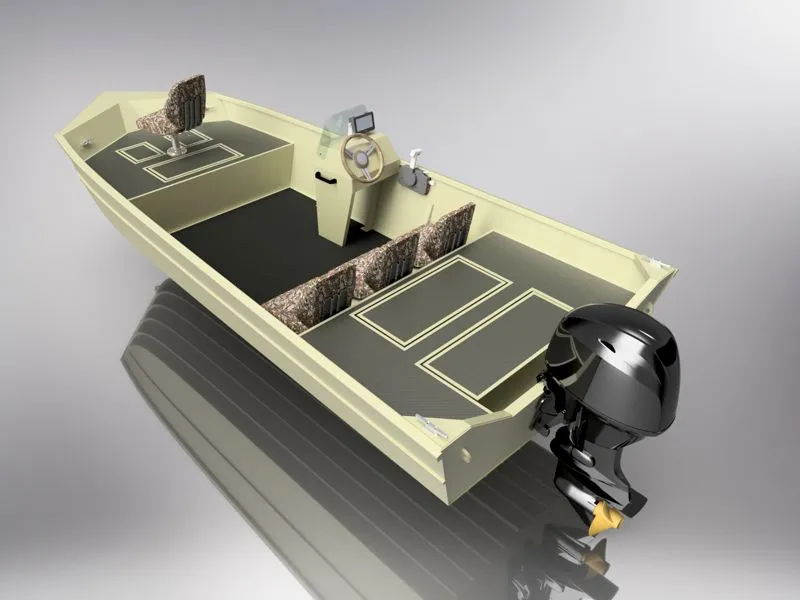

1760 Aluminum Jon Boat Plans with side console
Price range: 14,95 $ through 235,00 $ Select options This product has multiple variants. The options may be chosen on the product pageQuick View
Loading... All products loaded
