Plywood Boat Plans
Showing all 7 results
-
- Hull length: 11′ (3.35 m)
- Hull width 4″ 9″ (1.45 m)
- Floor Dimesion: 32 3/4″ x 59 1/2″(0.84m x 1.51m)
- Side Depth Stern 24″ (61 cm)
- Side Depth Bow 30 1/2″ (78 cm)
- Cockpit Depth 18 1/2″ (47 cm)
- Stern locker 33 gallons (135 liters)
- Side lockers – 2 x 13 gallons (2 x 50 liters)
- Bow locker – 25 gallons (95 liter)
- Deadrise 15° (at 79″ / 2 meter from stern)
- Dry hul weight: 265 lbs (120 kg)
- Weight (Boat + max engine, dry) 375 lbs (170 kg)
- Draft (boat, engine + one person) 7″ (18 cm)
- Displacement (boat, engine + one person) 540 lbs (245kg)
- Maximum Persons 2/3
- Design category „C/D”
- Transom inclination angle 12 degrees
- Fuel Capacity – Portable
- Transom Height: 20″ – 508mm (foot “L”)
- Outboard engine: 8 – 15 HP
- Speed max MPH 10-15 mph
11 Foot (3.35m) Plywood Utility Skiff Plans
Select options This product has multiple variants. The options may be chosen on the product pageQuick View -
A very easy-to-build rowboat constructed using the stitch-and-glue method.
- Length over all : 11.5 ft (3.50 meter)
- Beam over all : 62″ (1.57 meter)
- Design draft : 7″ (17,5 cm)
- Design displacement : 639 lbs (290 kg)
- Max recommended draft: 10″ (25 cm)
- Max recommended displacement: 1200 lbs (550 kg)
- Design category “D”
- Mass of boat: 127 lbs (58 kg)
11 Foot (3.5m) Plywood Row Boat Plans
Select options This product has multiple variants. The options may be chosen on the product pageQuick View -

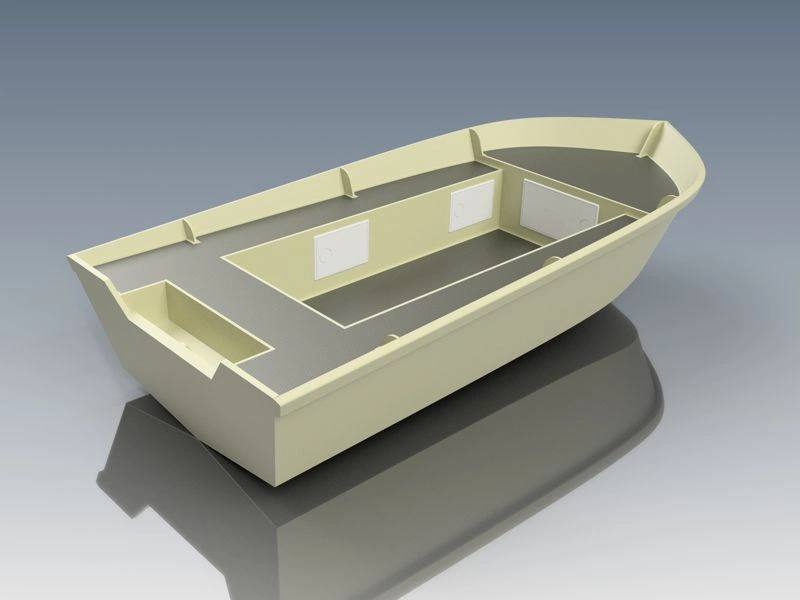

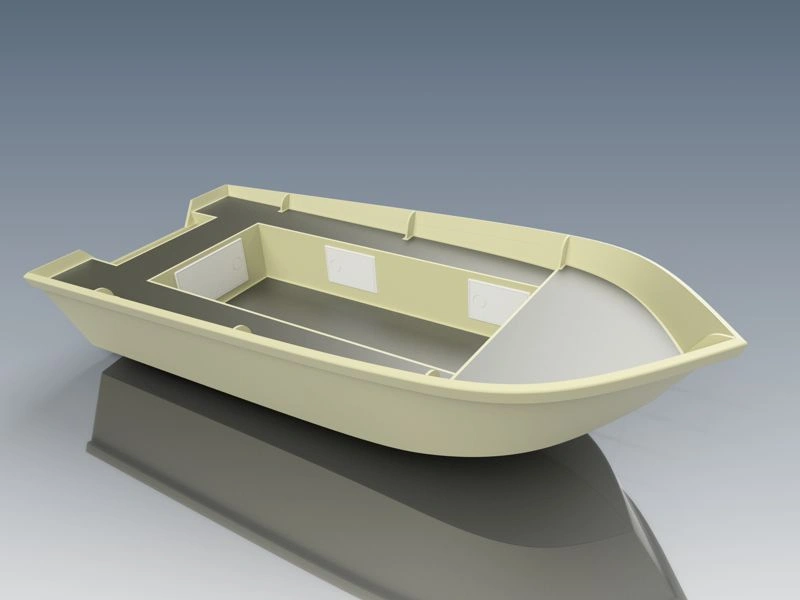

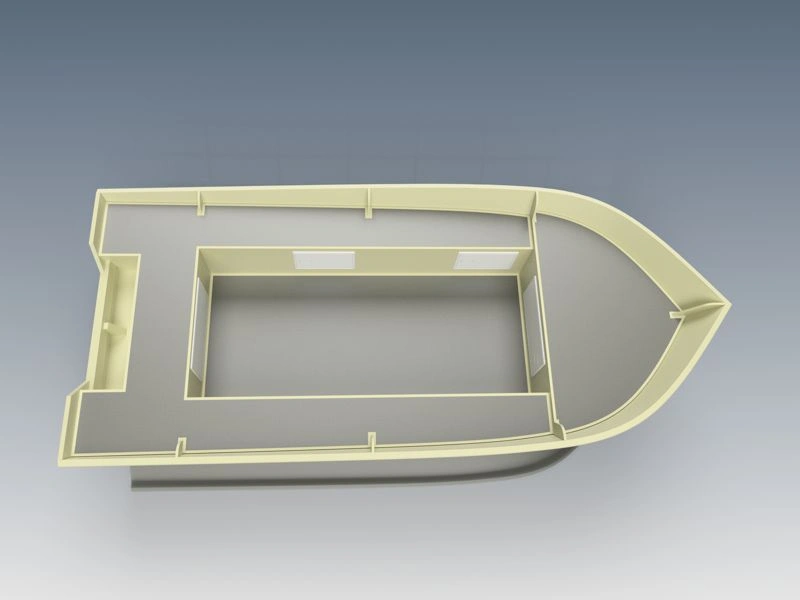

Price range: 5,99 $ through 60,00 $- Hull length: 12′ (3.65 m)
- Hull width 5″ 2″ (1.58 m)
- Floor Dimesion: 35 7/16″ x 79 1/2″ (0.90m x 2,02m)
- Side Depth Stern 25 1/2″ (65 cm)
- Side Depth Bow 32 5/16″ (82 cm)
- Cockpit Depth 20 5/8″ (52 cm)
- Stern locker 44 gallons (165 liters)
- Side lockers – 2 x 33 gallons (2 x 125 liters)
- Bow locker – 55 gallons (205 liter)
- Deadrise 9° (stern)
- Deadrise 13° (at 79″ / 2 meter from stern)
- Dry hul weight: 297 lbs (135 kg)
- Weight (Boat + max engine, dry) 420 lbs (190 kg)
- Draft (boat, engine + one person) 7″ (18 cm)
- Displacement (boat, engine + one person) 585 lbs (265kg)
- Maximum Persons 2/3
- Design category „C/D”
- Transom inclination angle 12 degrees
- Fuel Capacity – Portable
- Transom Height: 20″ – 508mm (foot “L”)
- Outboard engine: 8 – 15 HP
- Speed max MPH 10-15 mph
12 Foot (3.65m) Plywood Utility Skiff Plans
Price range: 5,99 $ through 60,00 $ Select options This product has multiple variants. The options may be chosen on the product pageQuick View -

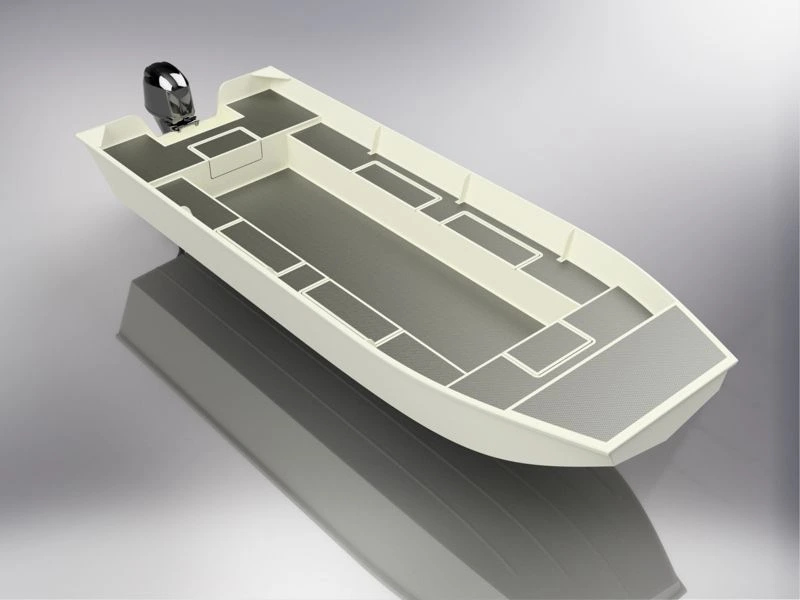

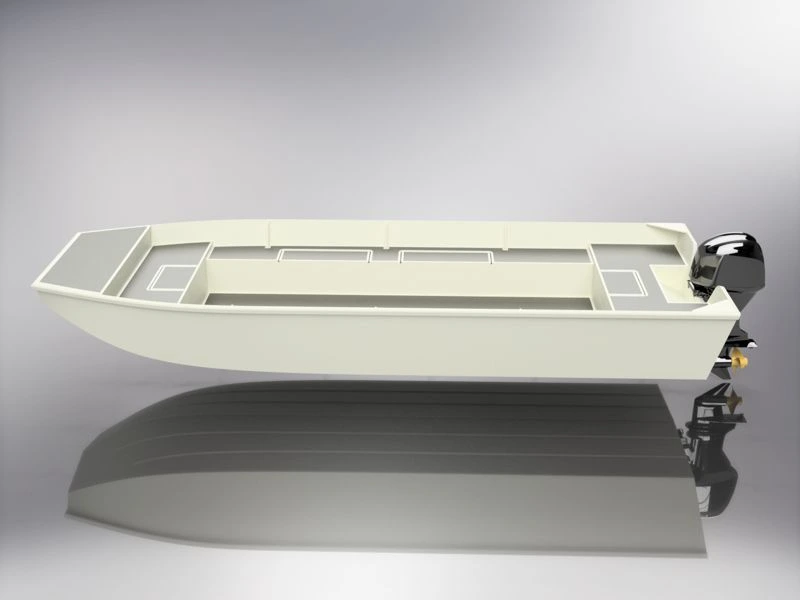

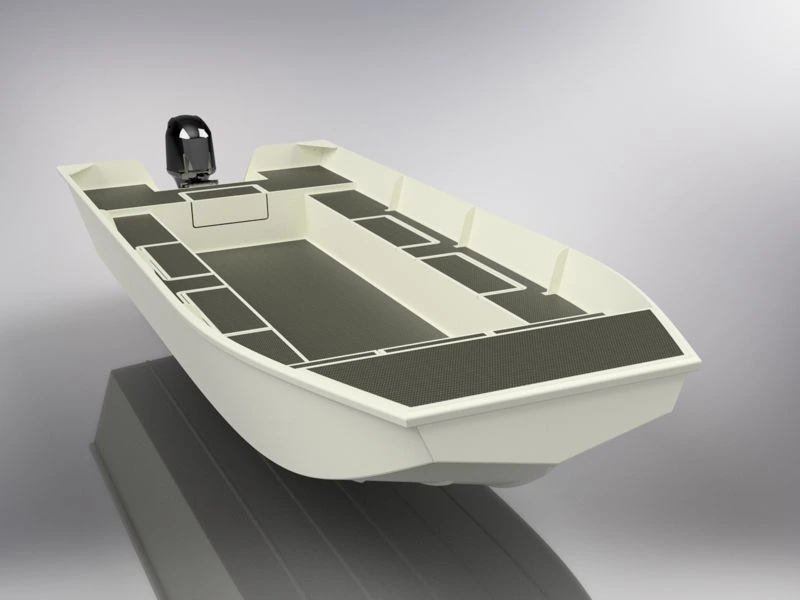

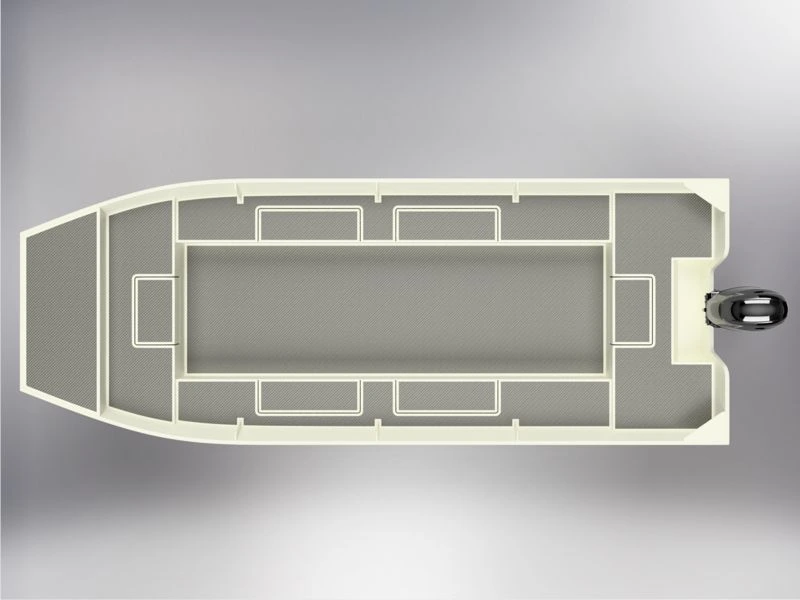

Price range: 5,99 $ through 45,00 $- Hull length: 20′ (6.0 m)
- Hull width 86′ (2.2 m)
- Dry hul weight: 770 lbs (350 kg)
- Draft max. waterline: 7″ (18 cm_
- Displacement up to waterline: 2680 lbs (1215 kg)
- Crew: max 5 person
- Design category „C”
- Transom inclination angle 12 degrees
- Transom height 20″ (508mm) foot “L”
- Outboard engine: max 60 HP
Chine Width 70″ (1,80m)
2070 Plywood Jon Boat Plans
Price range: 5,99 $ through 45,00 $ Select options This product has multiple variants. The options may be chosen on the product pageQuick View -
Technical data:
- Length over all : 2.65 m
- Beam over all : 1.40 m
- Design draft : 14,5 cm
- Design displacement 209 kg
- Max recommended draft: 18,5 cm
- Max recommended displacement: 310 kg
- Design category „D”
- Mass of boat: aprox 45 kg
- Plan in mm (metric scale)
9 Foot (2.65 meters) Plywood Utility Skiff Plans
Select options This product has multiple variants. The options may be chosen on the product pageQuick View -
- Hull length: 11′ 10″ (3,6m)
- Hull width 50″ (1.27m)
- Chine Width 38″ (0.97m)
- Side Depth 17″ (43cm)
- Cockpit Depth 15 1/2″ (39cm)
- Fuel Capacity – Portable
- Deadrise 0.0° (flat bottom)
- Dry hul weight: 308 lbs (140 kg)
- Maximum Persons: 1-2
- Design category „D”
- Transom inclination angle 12 degrees
- Transom Height: 15″ – 38.1cm (foot “S”)
- Outboard engine: 5 HP – 10 HP
Classic – 1238 – Aluminum Jon Boat Plans – Flat Bottom
Select options This product has multiple variants. The options may be chosen on the product pageQuick View -
- Length : 14 ‘ (4,26 meters)
- Chine Width 48″ (1,20m)
- Hull width: 65″ (1.65 meters)
- Draft: 4″ (10 cm)
- Side depth: 21 1/2″ (55 cm)
- Engine: 10-15 HP
- Long Shaft (20″ transom notch)
- Dry Hull Weight: 286 Lbs. (130 Kg.)
- Max Gross Load: 3 Persons @75kg = 225kg
- (Class “D”)
Classic Jon 1448 – Flat Bottom Plywood Boat Plans
Select options This product has multiple variants. The options may be chosen on the product pageQuick View
