Description
8 Foot (2.42 m) Plywood Jon Boat Plans

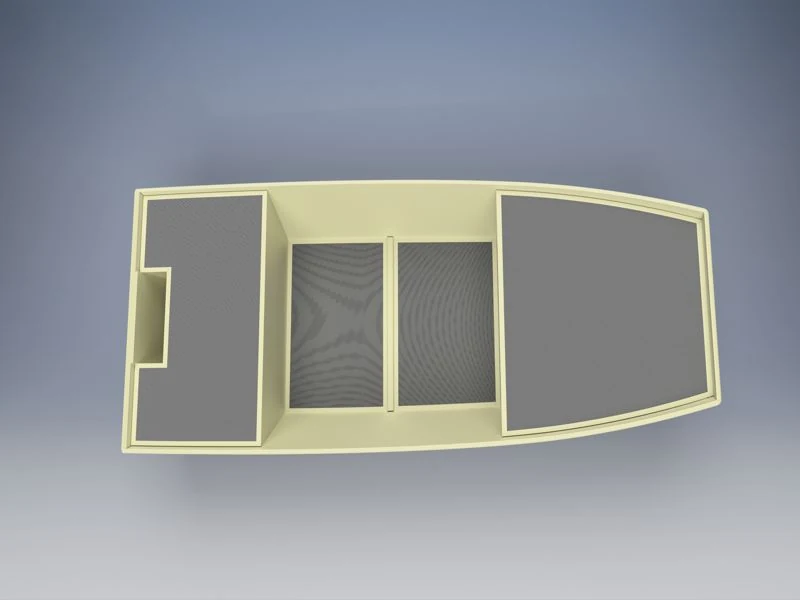

The 8 Foot Plywood Jon Boat is a compact, lightweight, and exceptionally simple flat-bottom boat designed for beginner builders. Its straightforward construction and small size make it an excellent first DIY boat-building project for anyone working in a garage or home workshop.
With an estimated hull weight of only 77 lbs (35 kg), the boat is easy to launch, transport, and store. It is ideal for one adult or for an angler accompanied by a child or a dog. The boat can be powered by an electric trolling motor or a small gasoline outboard engine of up to 6 HP.
Why Choose This Jon Boat?
- Extremely simple and beginner-friendly design
- No previous boat-building experience required
- Compact and lightweight flat-bottom hull
- Easy to transport, launch, and store
- Compatible with electric and gasoline outboard motors
- Suitable for solo fishing or recreation
- Low material requirements and straightforward construction
Technical Specifications
- Length overall: 7′ 11″ (2.42 m)
- Beam overall: 3′ 8″ (1.12 m)
- Side height: 15″ (381 mm)
- Hull type: flat-bottom jon boat
- Estimated hull weight: 77 lbs (35 kg)
- Design category: D
- Transom height: 15″ (381 mm) – short shaft (S)
- Maximum outboard engine: 6 HP
- Electric motor compatible
- Fuel system: portable fuel tank
- Recommended use: one adult or one adult with a child or dog
Hull Construction
Imperial Version
- Bottom and sides: 1/4″ plywood
- Frames: 1/2″ plywood
“`
Metric Version
- Bottom and sides: 6 mm plywood
- Frames: 12 mm plywood
“`
Construction Method
The boat is built using the proven stitch-and-glue construction method. The plywood panels are temporarily joined, aligned, and permanently bonded using epoxy fillets and fiberglass reinforcement.
The simple hull shape and limited number of structural parts make the construction process easy to understand. Basic woodworking tools are sufficient, and no previous boat-building experience is required.
Transport and Storage
Thanks to its compact size and low weight, the boat can be transported in the bed of a pickup truck or on a suitable car roof rack, provided that the vehicle and rack are rated for the load. It can also be stored easily in a garage, shed, or small workshop.
Power Options
- Electric trolling motor
- Gasoline outboard engine up to 6 HP
- 15″ short-shaft outboard configuration
- Portable fuel tank for gasoline-powered setups
Perfect For
- First-time boat builders
- Solo fishing trips
- One adult with a child or dog
- Ponds, small lakes, and calm rivers
- Electric trolling motor use
- Builders with limited storage or transport space
Instant download available after purchase – start building today!
