2070 Aluminum Jon Boat Plans with Center Console

Description

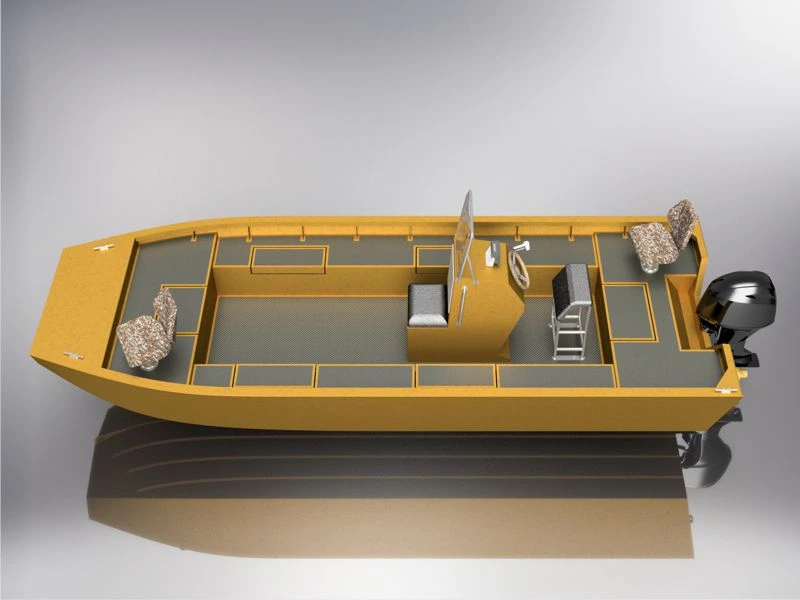

2070 Aluminum Jon Boat Plans with Center Console

The 2070 Aluminum Jon Boat with Center Console is a large and versatile 20-foot welded aluminum boat designed for fishing, recreational boating, transport, and utility applications. With an overall width of 86″ (2.20 m) and a wide 71″ (1.80 m) chine, the hull offers excellent stability and plenty of usable interior space.

This version features a center steering console, creating a practical layout with easy access along both sides of the boat. The design is intended for 40–115 HP outboard engines and can accommodate up to five persons.

Main Features

• 20′ (5.95 m) welded aluminum Jon Boat
• Center steering console
• Wide and stable 71″ (1.80 m) chine
• 5° deadrise
• Suitable for fishing, recreation, and utility use
• Designed for 40–115 HP outboard engines
• 20″ (508 mm) long-shaft transom
• Maximum capacity: 5 persons
• Design Category C
• Heavy-duty welded aluminum construction

Technical Specifications

• Hull length: 20′ (5.95 m)
• Hull width: 86″ (2.20 m)
• Chine width: 71″ (1.80 m)
• Maximum speed: 15–20 mph
• Side depth: 31 1/2″ (80 cm)
• Cockpit depth: 22″ (56 cm)
• Fuel system: portable fuel tank
• Deadrise: 5°
• Dry hull weight: 1,015 lbs (460 kg)
• Dry weight with maximum engine: 1,500 lbs (680 kg)
• Draft at maximum waterline: 5″–7″ (12–19 cm)
• Maximum displacement: 2,910 lbs (1,320 kg)
• Maximum persons weight: 825 lbs (375 kg)
• Maximum persons: 5
• Design category: C
• Transom inclination angle: 12°
• Transom height: 20″ (508 mm) – long shaft (L)
• Recommended outboard engine: 40–115 HP
• Steering configuration: center console

Center Console

The center steering console provides a comfortable driving position while leaving clear passage on both sides of the cockpit. This arrangement is especially practical for fishing, allowing easy movement between the bow and stern.

The console provides space for the steering system, engine controls, switches, gauges, and marine electronics while maintaining an open and functional deck layout.

Aluminum Construction

Construction Method

The 2070 is designed as a fully welded aluminum structure. The hull is assembled upside down, allowing the frames, longitudinals, bottom panels, and side panels to be positioned and aligned accurately before the hull is turned over for installation of the floor, center console, seating, and other interior components.

Accurate fitting, tack welding, dimensional checks, and a controlled welding sequence are important to maintain hull geometry and reduce heat distortion during fabrication.

Difficulty Level

Difficulty level: Medium.

The project is suitable for builders with basic to intermediate aluminum fabrication and welding experience. Previous boat-building experience is helpful but not required for builders who are comfortable cutting, fitting, and welding aluminum plate and structural components.

Power and Transom

The boat is designed for a 20″ (508 mm) long-shaft outboard engine. The transom has a 12° inclination angle, and the recommended engine range is 40–115 HP.

Fishing and Utility Use

The wide hull and open center-console layout provide plenty of usable space for fishing equipment, coolers, batteries, storage, seating, and passengers. Clear access around the console makes the boat especially practical for anglers who need to move freely around the cockpit.

With a maximum displacement of 2,910 lbs (1,320 kg) and capacity for up to five persons, the 2070 is suitable as a fishing platform, recreational boat, or practical aluminum utility boat.

Perfect For

• Lake and river fishing
• Center-console fishing applications
• Recreational boating
• Utility and workboat use
• Transporting passengers and equipment
• Inland and sheltered waters
• Builders with aluminum welding experience

Instant download available after purchase – start building today!
